300 x 200
Compact work area for small parts, plates, samples, and precision engraving work.
Built in Mumbai and Thane
Compact CNC engraving machines built on solid castings.
Swagat Enterprises builds practical, heavy-duty CNC engraving machines for workshops that need a rigid machine, low vibration, and a dependable finish in a compact footprint.
15 years
Building and maintaining CNC machines
0.8 kW - 5.5 kW
Water-cooled spindle options
100 / 200 mm
Standard Z-axis options, customizable
Machine Range
Small CNC engraving machines with configurable build options.
Machines are selected and configured according to the customer application, required controller, motor package, spindle power, and enclosure needs.
400 x 300
Balanced footprint with taller Z travel for flexible engraving and light machining needs.
400 x 500
Larger table option for bigger jobs while keeping the machine workshop-friendly.
Custom Size
Z-axis height, body panels, covers, coolant tray, and motor/controller choices can be customized.
Materials and Use
For engraving and cutting non-ferrous materials.
The machines are suitable for engraving and cutting materials such as wood, acrylic, MDF, plastic, aluminum, brass, copper, and PCB material. Ferrous materials are supported for engraving only, not cutting or machining.
Applications
Name plates, PCB engraving, sign work, gifts, jewelry work, marking, and small industrial jobs.
Motion Hardware
Hiwin linear guides, ball screws, servo motors, or closed-loop stepper motors as required.
Control Options
PC-based or standalone controller options using standard G-code supporting controllers.
Build Options
With or without body panels, coolant tank and tray, bellow covers, or telescopic covers.
About
Designed for rigidity, serviceability, and value.
Swagat Enterprises has experience in building and maintaining CNC engraving machines for 15 years. Machines are made from solid castings and are carefully designed to reduce vibration and improve finish quality while keeping ownership practical for small workshops.
After-sale support
Support, installation help, and limited operating guidance are provided. Application-specific CNC process training is not included because requirements vary widely across jobs and materials.
Gallery
Machine photos

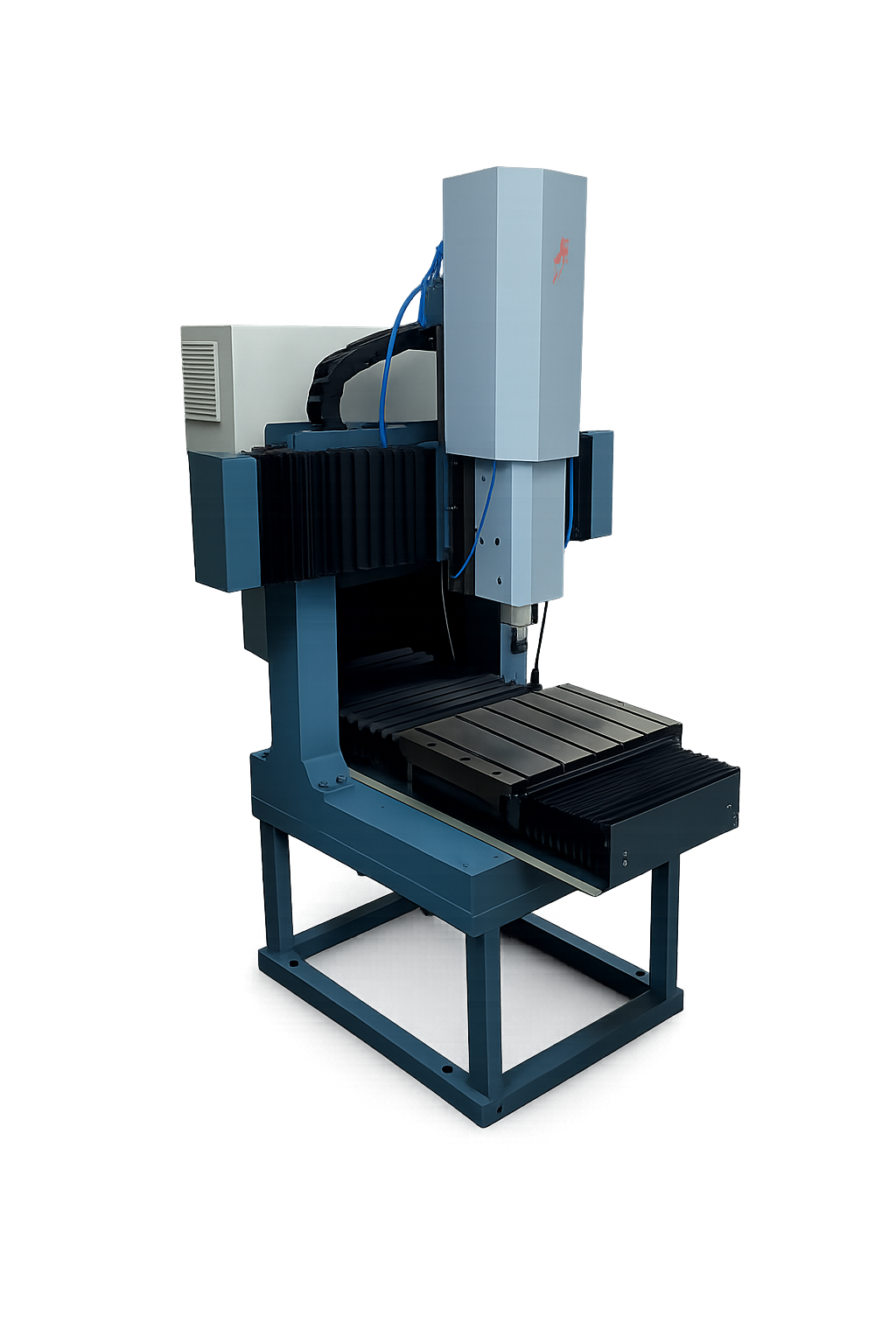

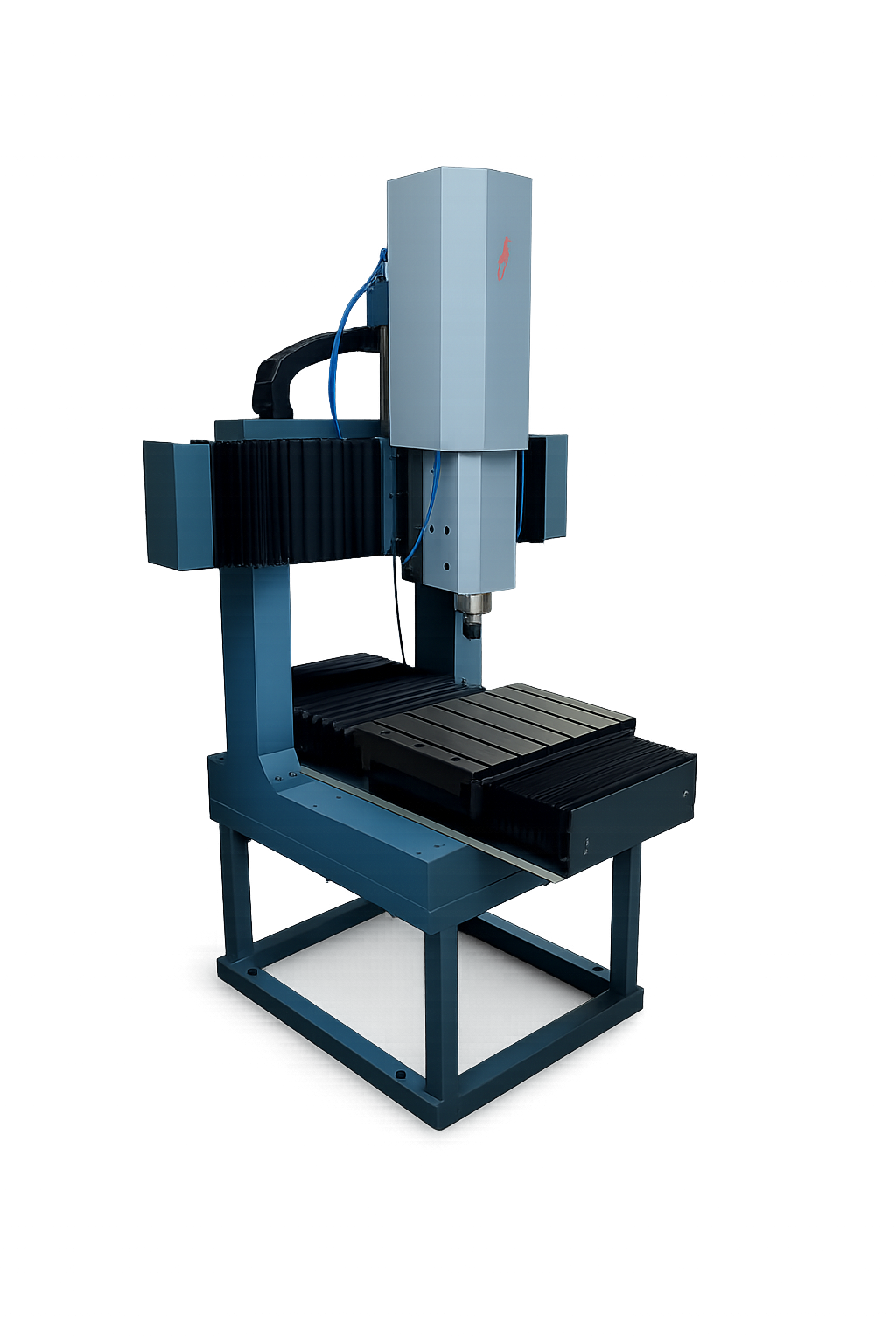

Current V1.0 photos show the 400 x 300 x Z200 machine configuration.
Contact
Send your machine requirement.
Share your work area, material, Z height, spindle power, and controller preference. Contact details will be added after final confirmation.
